Product Overview

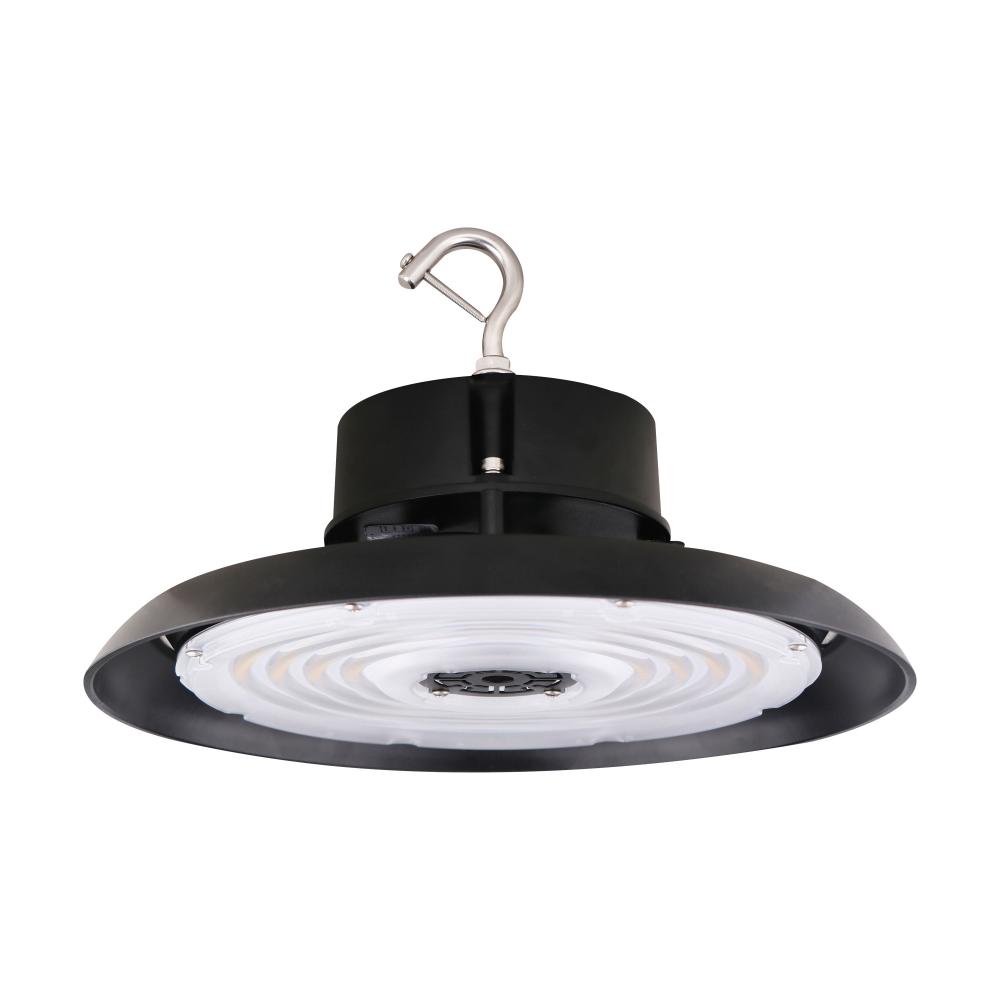

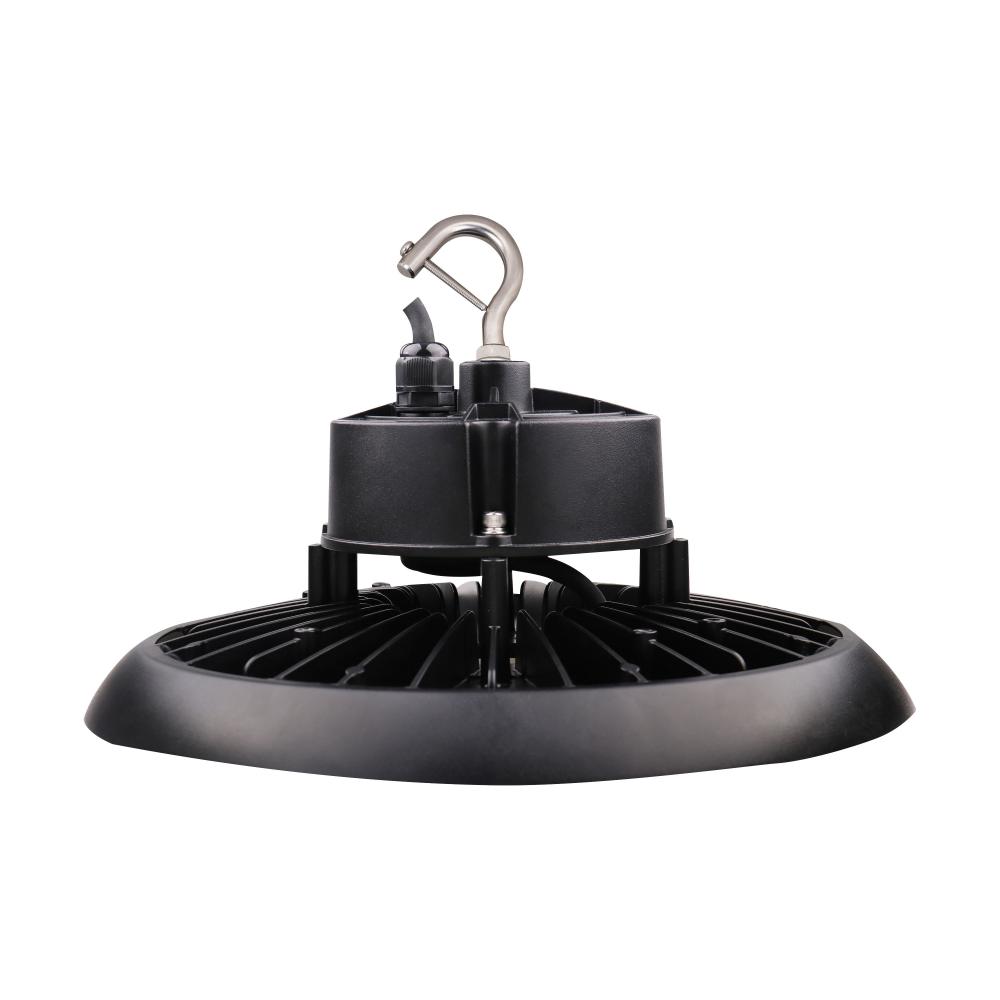

240W UFO LED High Bay; 33360 Lumens; 4000K; 120-277 Volt; 0-10V Dimmable; Black Finish

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

Black

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Hi-Bay

Sub Category:

UFO

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Diameter:

14.17

Dimmable:

Yes-Dimmable

Each Height:

8.07

Each Length:

16.54

Each Width:

16.54

Lumens:

33360L

Tariff Code:

9405.40.9000

Warranty:

5-Years

Wire Length:

72

Amps:

2.000-0.866A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Malaysia

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

1.2776

Each Quantity:

1

Efficacy:

139.00 LPW

FCC Compliant:

Yes

Feature 1:

Integrated Sensor Port

Feature 2:

IP65

Feature 3:

6KV Surge Protection

Feature 4:

6 Foot Whip

Feature 5:

90 degree Beam Angle

Feature 6:

50,000 Hours

Feature 7:

5 Year warranty

Finish Family:

Black

HID Equiv:

700W

Housing Color:

Black

Impact Rating (IK):

IK08

Incandescent Equivalent:

2000W

Indoor Outdoor:

Indoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

Satco's 65-787R1 240-watt, 4000K, black UFO LED High Bay. The superior value offered in our new commercial LED High Bay UFO's meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant ad

Material:

Die-Cast Aluminum

Mounting Procedure:

Ceiling

NSF Approved:

Yes

Operating Temp:

-40C (-40F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Box

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 240-watt, 4000K, black UFO LED High Bay. The superior value offered in our new commercial LED High Bay UFO's meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, em

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

LED UFO HIGHBAY 240W/4000K

Sloped Ceiling Compatible:

No

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

15%

Wattage Selectable:

No

Weight Lb.:

10.11
