Product Overview

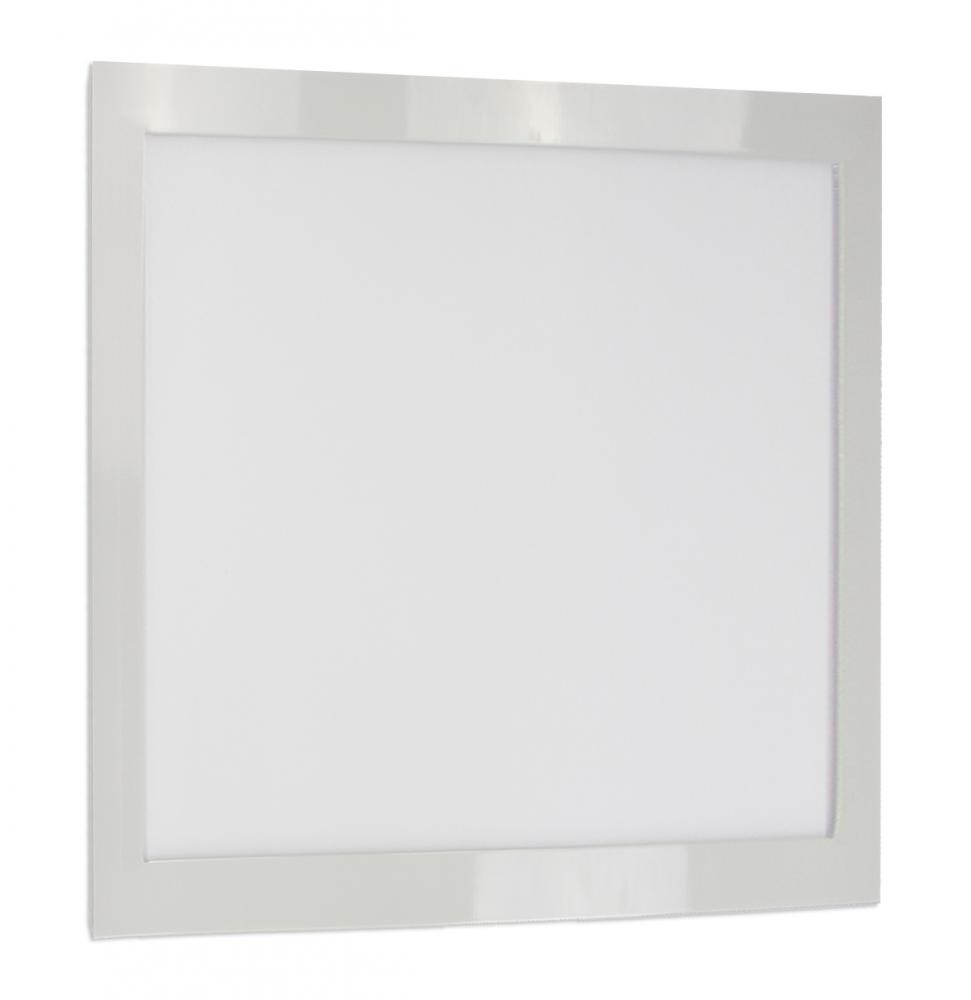

18W; 12 in.; x 12 in.; Surface Mount LED Fixture; 5000K; 80 CRI; Low Profile; White Finish; 120/277V

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

Edge Lit

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Yes-Dimmable

Each Height:

14.57

Each Length:

13.39

Each Width:

2.48

Length:

12

Lumens:

1600L

Tariff Code:

9405.11.8020

Warranty:

5 Year Limited - Fixtures

Amps:

0.150/0.065A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

120V only

Dimming Type:

Reverse Phase

Each Cube:

0.28

Each Quantity:

1

Efficacy:

88.89 LPW

FCC Compliant:

Yes

Feature 1:

Length: 12.00 inches, Width: 12.00 inches, Height: 0.75 inches

Feature 2:

Dimmable

Feature 3:

White Finish

Feature 4:

5000K Natural White Light

Feature 5:

1600 lumens

Feature 6:

Damp location rated for indoor use

Feature 7:

Easy installation

Feature 8:

FCC and RoHS compliant

Feature 9:

5 year limited warranty

Finish Family:

White

Fixture shape:

Square

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Long Description:

Satco's 62-1151 18 watt, 12 inch by 12 inch LED surface mount is a sleek lighting solution for commercial and residential applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this low profile, dimmable surface mount i

Material:

Aluminum

Mounting Procedure:

Ceiling

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.8

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 18 watt, 12 inch by 12 inch LED surface mount is a sleek lighting solution for commercial and residential applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this low profile, dimmable surface mount in a whit

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

18W/LED/1X1/FLUSH/5K/WH

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Wattage Selectable:

No

Weight Lb.:

2.51
