Product Overview

LED Flat Panel Fixture; 50W; 2 ft. x 4 ft.; 3500K

Standard Information

Category:

Specialty Items

Subcategory:

Fluorescent Decorative Panels

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Flat Panel

Sub Category:

Edge Lit

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Neutral White

Dimmable:

Yes-Dimmable

Each Height:

25.79

Each Length:

49.61

Each Width:

3.94

Length:

47.6

Lumens:

5150L

Warranty:

5 Year Limited - Fixtures

Amps:

0.500-0.181A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

2.9172

Each Quantity:

1

Efficacy:

103.00 LPW

FCC Compliant:

Yes

Feature 1:

Neutral white light

Feature 2:

Commercial LED

Feature 3:

Damp rated for indoor use

Feature 4:

L:47.59" W:23.69" H:1.97"

Feature 5:

Rectangle, White

Finish Family:

White

Fixture shape:

Rectangle

Flicker Free:

Yes

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

300W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

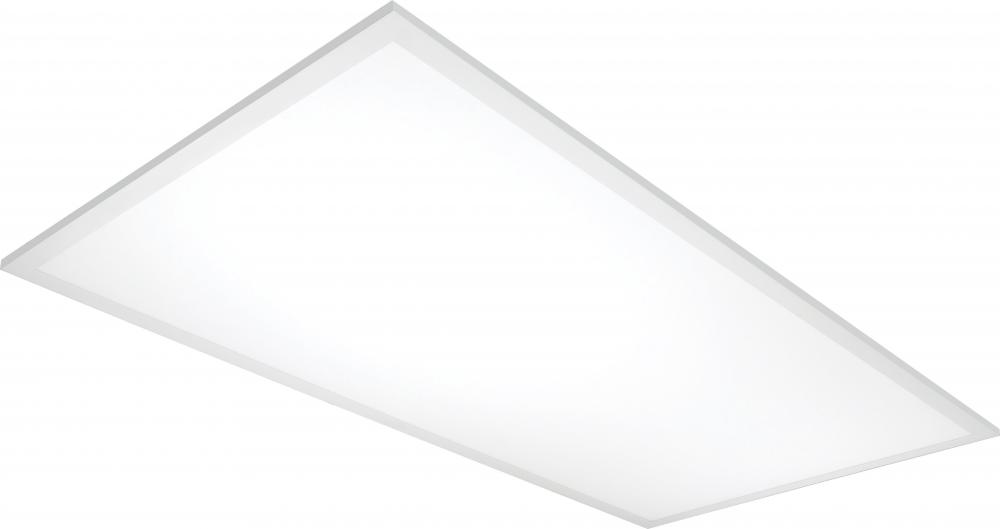

The NUVO 65-324R1 2'X4', 50-watt LED flat panel fixture, offers neutral white light in a white finish. Damp rated for indoor use, this ceiling fixture is suitable for ambient lighting of interior commercial spaces. Sleek and dimmable, this flat pan

Material:

Aluminum / Steel

Mounting Procedure:

Ceiling: Lay-in Recessed Surface Mount Suspension

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

2

Pack Type:

Box

Panel Size:

2x4

Photocell:

No Photocell

Power Factor:

0.95

Quantity In Pack:

2

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The NUVO 2'X4', 50-watt LED flat panel fixture, offers neutral white light in a white finish. Damp rated for indoor use, this ceiling fixture is suitable for ambient lighting of interior commercial spaces. Sleek and dimmable, this flat panel fixtur

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

2X4 FLAT PANEL 50W

Temperature (CCT):

3500K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

29.8
