Product Overview

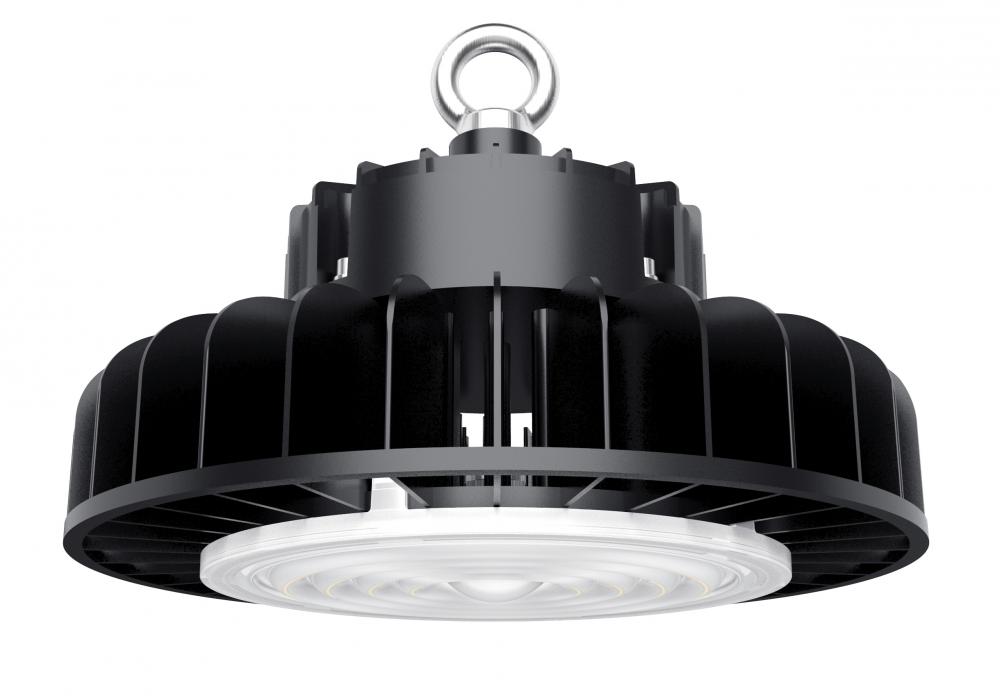

LED High bay; 150W; 4000K; Black Finish

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

Black

Option:

LED

Prop 65

Refinement Options

Category:

Hi-Bay

Sub Category:

UFO

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Diameter:

9.44

Dimmable:

Yes-Dimmable

Each Height:

9.65

Each Length:

11.02

Each Width:

11.02

Lumens:

19500L

Tariff Code:

9405.11.6020

Warranty:

5-Years

Wire Length:

18

Amps:

1.500-0.542A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

70+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

0.6782

Each Quantity:

1

Efficacy:

130.00 LPW

FCC Compliant:

Yes

Feature 1:

Diameter: 9.44 inches, Height: 7.44 inches

Feature 2:

Black Finish

Feature 3:

Round Shape

Feature 4:

4000K Cool White Light

Feature 5:

Material: Aluminum Alloy

Feature 6:

Lens Material: Polycarbonate

Feature 7:

19,500 lumens

Feature 8:

120 degree beam spread

Feature 9:

5-year limited warranty

Finish Family:

Black

Fixture shape:

Round

HID Equiv:

300W-400W

Impact Rating (IK):

IK08

Incandescent Equivalent:

450W

IP Rating:

IP65

JA8 Compliant:

No

Lens Material:

Polycarbonate (PC)

Long Description:

Satco's 65-183 150-watt UFO high bay is a versatile lighting fixture for commercial applications. This rugged, integrated fixture offers a bi-level dimming microwave, a pendant mounting adapter, and an anti-glare shield. This dimmable high bay comes in

Material:

Aluminum Alloy

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.93

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 150-watt UFO high bay is a versatile lighting fixture for commercial applications. This rugged, integrated fixture offers a bi-level dimming microwave, a pendant mounting adapter, and an anti-glare shield. This dimmable high bay comes in a blac

Safety Listing:

cETLus

SDS class:

LED_Lamp

Short Description:

LED UFO HIGHBAY - 150W/4000K

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

6.17
